How to Setup Star TSP100 Series Printer

How to Setup Star TSP100 Series Printer

In order to start, please follow the official web page link in order to download Printer drivers.

Download page: http://www.starmicronics.com/support/default.aspx?printercode=tsp100

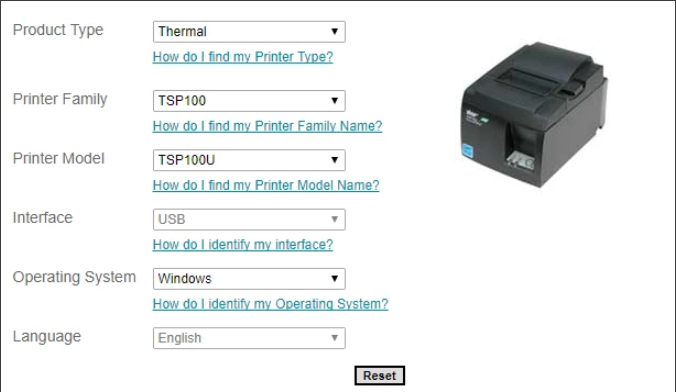

Select a model that you have


Select the latest version of the driver

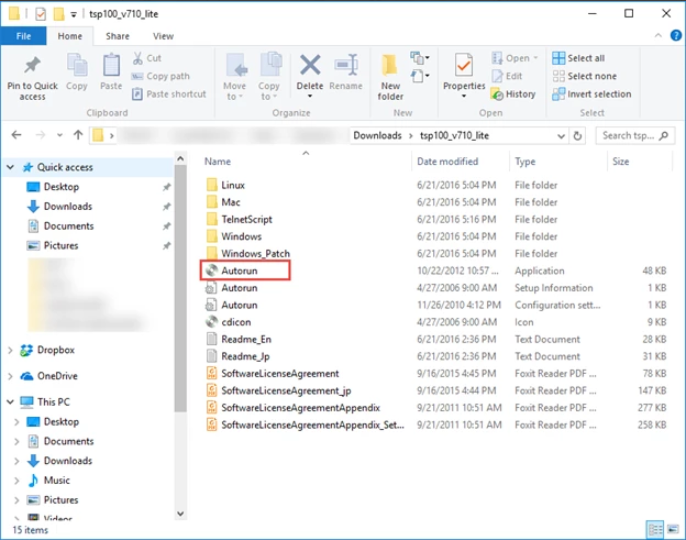

Unpack downloaded archive and double-click on Autorun file

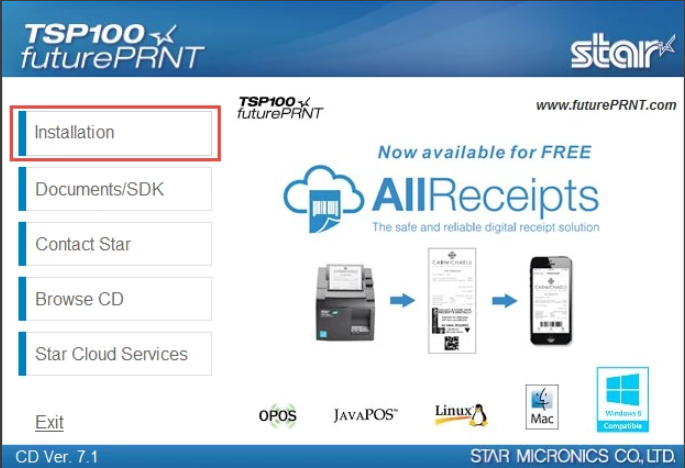

Press Installation

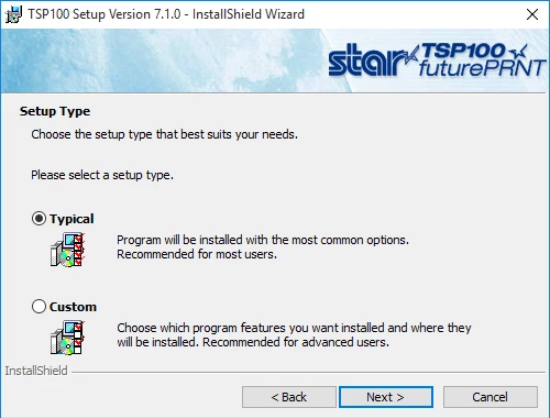

Select Typical Installation

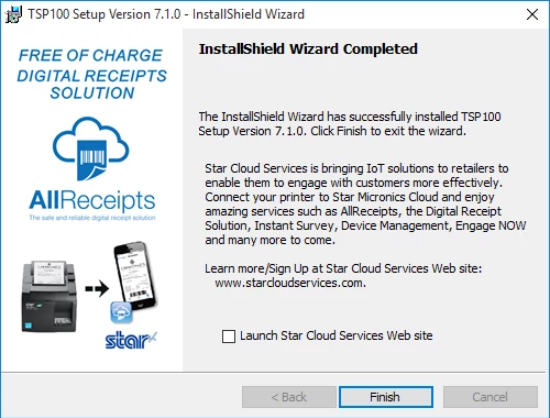

Once installation completed, press Finish


After the printer is installed, you need to make sure that the correct page layout is set on a printer for Wireless Standard receipts:

Open up Control Panel > Devices and Printer

Right mouse click on installed printer > Printer Properties


Go to Preferences

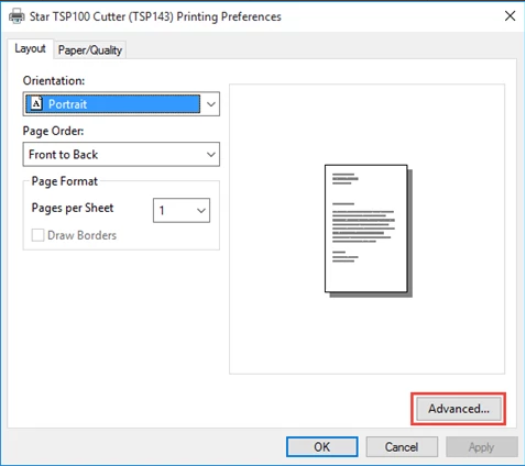

Go to Advanced

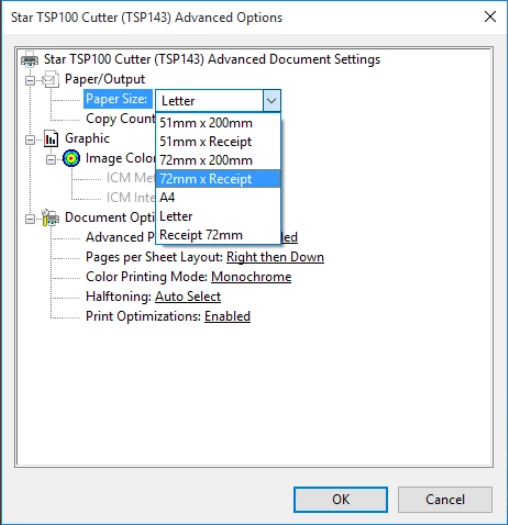

Select Paper Size: 72mm x Receipt and press OK

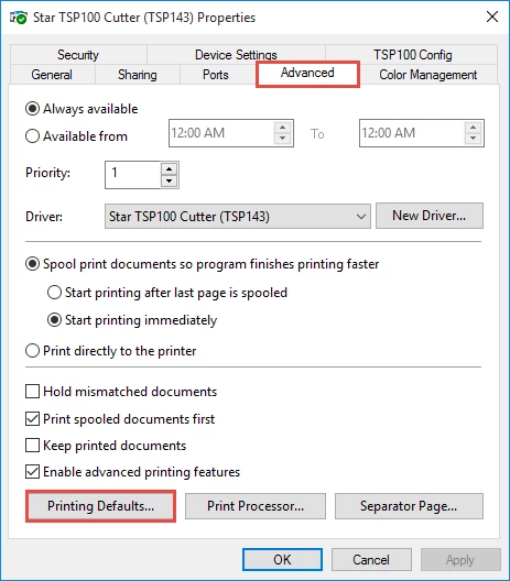

Go back on Printer Properties > select Advanced tab > press Printing Defaults


Select Paper Size: 72mm x Receipt and press OK

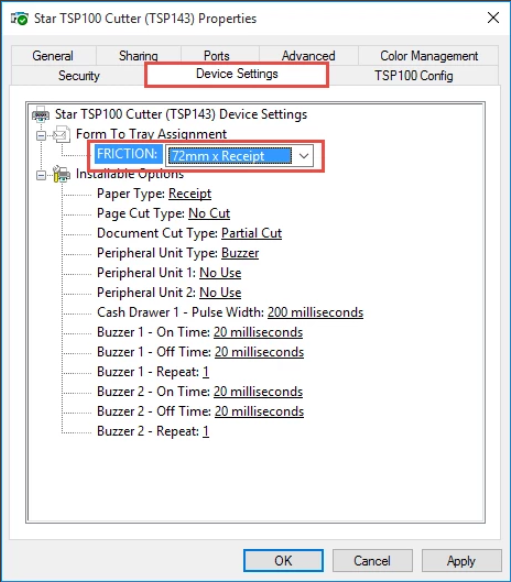

Back on Printer Properties → select Device Settings tab → make sure 72mm x Receipt layout is selected and press OK:


Once the driver is installed and Paper size is set properly, the printer is ready to be configured on POS:

  1. Open up POS.
  2. On a login screen in the right bottom corner click on the Configure button.

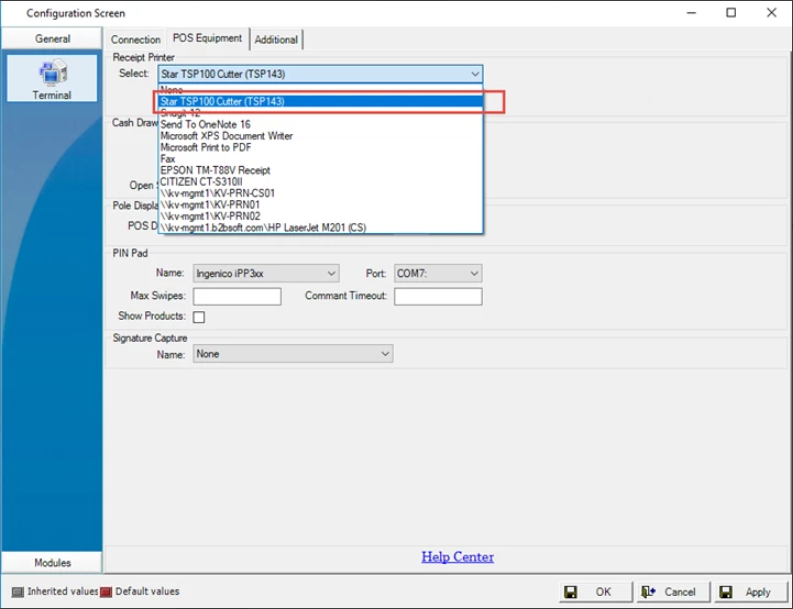

  3. The configuration screen will open, then go to POS Equipment tab.
  4. Under the Receipt Printer in a drop-down menu select the printer that was installed earlier.

Click on OK at the bottom, login to POS, and try to print any receipt.
