How to Setup Receipt Layout: Epson TM-T88 Series Printer

How to Setup Receipt Layout: Epson TM-T88 Series Printer

Depending on Windows version and Windows settings there is a need to adjust POS receipt layout in order to have receipt info Fit the receipt

Go to Control Panel > Devices and Printers highlight receipt printer and click on Print server properties at the top


In Print Server Properties window

  1. Check Create a new form
  2. Name new form
  3. Under Form description (measurement) switch to Metric
  4. Set Width 70.00 (note: you may also increase the length by adjusting Height value)
  5. Click on Save Form
  6. and click Close to close the window

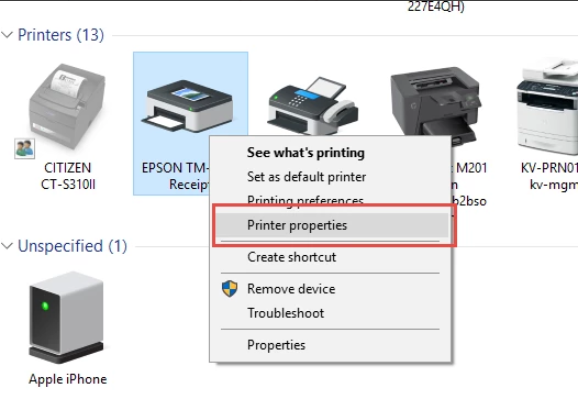

Once a new receipt layout is created you are ready to assign it to a printer. Click with your right mouse button on a printer and select the option Printer Properties

​
​

  1. Under properties, window go to Preferences
  2. Under Preferences go to  Advanced
  3. select your custom receipt template and hit OK
